Key Components of CCTV Systems: Understanding Lenses, Image Sensors, and Display Technologies

Choosing the right components for a CCTV system is essential for ensuring its performance, reliability, and long-term effectiveness.

While surveillance systems are often evaluated based on their coverage or brand reputation, it is the quality of the underlying hardware that directly influences how well the system performs under real-world conditions.

Key components such as lenses, image sensors, camera housings, mounts, and monitors determine how clearly a scene is captured, how well details are preserved, and how easily footage can be monitored or reviewed.

If these elements are not carefully selected, even the most advanced software or storage solution cannot compensate for poor image quality or a limited field of view.

Beyond just capturing footage, modern CCTV systems are expected to operate continuously in a variety of environments, such as indoor, outdoor, high-traffic, low-light, or harsh weather conditions.

Each hardware component contributes to the system’s ability to meet these demands, whether by enhancing visibility, protecting the camera, or improving the viewing experience for security personnel.

Understanding these components is not only important for technical teams but also for business owners, facility managers, and decision-makers who want to invest in a system that meets both current and future needs.

With the right combination of hardware, a CCTV system can provide consistent image quality, withstand environmental challenges, and support efficient security operations.



Lenses and Image Sensors: The Heart of Image Capture

The lens and image sensor are two of the most critical elements in any CCTV camera. Together, they determine the clarity, depth, and field of view captured by the system.

If the lens does not suit the viewing requirements or the sensor cannot perform in varied lighting conditions, the effectiveness of the entire surveillance setup can be compromised.

Fixed, Varifocal, and Zoom Lenses

The lens controls what the camera sees. Different types of lenses are available to suit different surveillance needs:

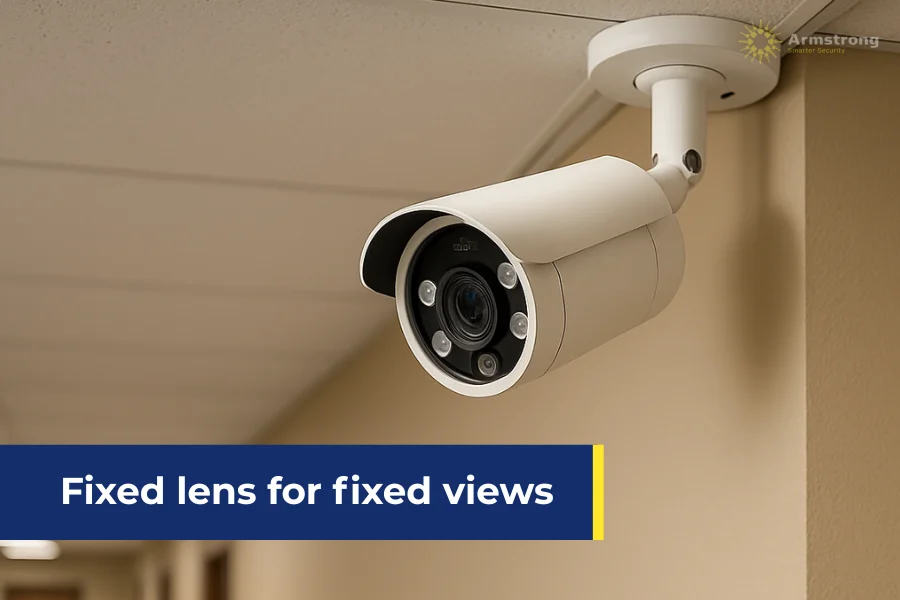

Fixed lenses provide a constant focal length, offering a single field of view. These are best used in environments where the surveillance area does not change, such as monitoring a doorway or hallway. They are simple to install, generally lower in cost, and require minimal adjustment.

Varifocal lenses offer manual zoom and focus control, giving installers flexibility to adjust the camera’s angle and coverage during setup. This is useful in areas where the exact coverage area may not be clear in advance or where adjustments are expected over time, such as in retail shops or open office spaces.

Motorised zoom lenses allow for remote adjustment, providing greater control and precision. These are ideal in larger environments where security staff may need to zoom in on specific activity without physically accessing the camera.

They are commonly used in outdoor environments, public spaces, or larger commercial properties.

Selecting the correct lens type depends on the monitoring objective, the distance from the subject, and whether flexibility or ease of use is more important.

CCD vs. CMOS Sensors

The image sensor converts light captured by the lens into electronic signals. The two main types of image sensors used in CCTV cameras are CCD (Charge-Coupled Device) and CMOS (Complementary Metal-Oxide-Semiconductor).

CCD sensors have been traditionally known for their high image quality and performance in low-light conditions. They produce consistent, low-noise images, which can be useful in environments where lighting is poor or unpredictable.

CMOS sensors have become the standard in most modern cameras due to their energy efficiency, faster processing, and lower manufacturing cost.

Advances in CMOS technology have closed the quality gap, making them suitable for both indoor and outdoor surveillance across a wide range of lighting conditions.

When choosing between the two, consider factors such as lighting consistency, desired frame rate, and budget. For most general surveillance needs, CMOS sensors offer a good balance between performance and affordability.

However, for specialised applications where image detail in challenging lighting is crucial, a high-end CCD camera may still be the preferred option.



Camera Housings and Mounts: Protection and Precision

CCTV cameras are often exposed to a range of environmental and operational conditions. Whether installed indoors or outdoors, the right housing and mounting solution is essential to protect the camera, maintain image clarity, and ensure the intended field of view is captured.

Improper selection can lead to weather damage, poor positioning, or even tampering, all of which compromise the effectiveness of the surveillance system.

Weatherproof and Vandal-Resistant Housings

The primary role of a camera housing is to shield the internal components from environmental elements such as dust, rain, humidity, and temperature changes.

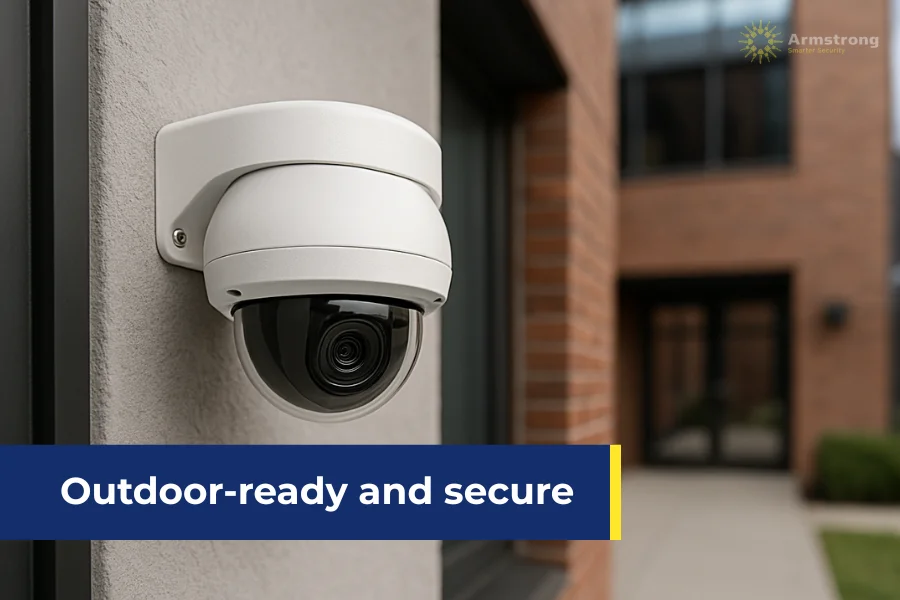

For outdoor installations, weatherproof housings with appropriate Ingress Protection (IP) ratings are critical.

• IP65 to IP67 rated housings are standard for outdoor use. These protect against dust and varying degrees of water exposure.
• IK-rated housings provide impact resistance, making them suitable for areas where vandalism or tampering is a concern, such as parking lots or building exteriors.
• Dome housings offer discreet surveillance and are often used in indoor commercial spaces. They conceal the camera direction, making it harder to determine what is being monitored.
• Bullet-style housings are more visible and act as a deterrent. They are easier to angle and tend to have better range for outdoor viewing.

Choosing the right housing depends on the location, exposure level, and whether discretion or deterrence is a higher priority.

Mounting Options and Installation Considerations

Mounting determines the placement, stability, and viewing angle of the camera. The goal is to provide an unobstructed line of sight while securing the camera firmly against vibration, wind, or physical interference.

• Wall mounts are suitable for external building corners or flat surfaces and offer easy maintenance access.
• Ceiling mounts are ideal for wide-area indoor coverage, such as in offices, corridors, or open retail areas.
• Pole and corner mounts are used in car parks, warehouse exteriors, and other challenging positions where fixed walls are not available.

Proper mounting should allow for angle adjustments to optimise field of view. Some setups may require tilting or rotating brackets to achieve the right coverage.

In all cases, mounting must support the weight and shape of the camera housing while also concealing or protecting the cabling for both aesthetic and security purposes.

By choosing the appropriate housing and mount for each camera location, users can significantly improve the durability and reliability of their CCTV system while maintaining image quality and operational performance.



Monitors and Display Technologies: Seeing the Full Picture

While cameras and sensors are critical for capturing footage, the monitor is where surveillance becomes actionable. The choice of display technology affects how clearly video feeds are viewed, how long operators can remain attentive, and how effectively issues are identified in real time.

For security personnel working in control rooms or monitoring stations, the right monitor setup directly impacts performance and decision-making.

LCD, LED, and OLED Displays

CCTV monitors vary in display technology, each offering unique advantages depending on the environment and surveillance requirements.

LCD (Liquid Crystal Display)

These monitors are the most commonly used in surveillance setups. They are reliable, energy-efficient, and widely available in various sizes and resolutions. For basic monitoring tasks, they offer sufficient clarity and contrast for standard use.

LED (Light-Emitting Diode)

These monitors are LCD with LED backlighting. These offer improved brightness, energy efficiency, and sharper image contrast compared to traditional LCDs. They are well-suited to control rooms with moderate to high ambient light, where screen visibility must remain clear throughout the day.

OLED (Organic Light-Emitting Diode)

These displays provide superior image quality, including deeper blacks and faster refresh rates. They are best for environments that require precise visual detail or where advanced video analytics are being used. However, they tend to be more expensive and can be prone to burn-in over prolonged static use, making them less common for 24/7 surveillance applications.

Selecting the appropriate monitor technology depends on factors such as the duration of use, required resolution, and the layout of the monitoring area.

Choosing the Right Monitor for Surveillance

A suitable CCTV monitor should match the resolution of the camera feeds being viewed. Using a high-definition camera with a low-resolution monitor can result in lost detail and limit the effectiveness of real-time monitoring or post-event analysis.

Important factors to consider include:

Screen Size

Larger screens or multi-screen arrays are ideal for viewing multiple camera feeds at once. For individual workstations, a 24 to 32-inch screen often provides a good balance between clarity and ergonomics.

Resolution

Full HD (1920×1080) is sufficient for most surveillance tasks, but 4K monitors may be beneficial for reviewing footage from high-resolution cameras or zoomed-in areas.

Viewing Angle

A wide viewing angle is essential in multi-operator control rooms, ensuring consistent image quality from different perspectives.

Connectivity

Monitors should support HDMI, DisplayPort, or BNC inputs, depending on the system configuration. Compatibility with digital video recorders (DVRs), network video recorders (NVRs), or direct camera feeds should be confirmed in advance.

Positioning also matters. Monitors should be installed at eye level and at a distance that allows operators to view content without strain. Anti-glare coatings and adjustable stands can further enhance comfort for long-term viewing.



Get a Reputable CCTV Supplier

A CCTV system is only as effective as the components that support it. From lenses and image sensors to housings, mounts, and monitors, each element plays a vital role in determining how well surveillance objectives are met.

Poor lens selection can limit the field of view, while inadequate sensors can compromise clarity in challenging lighting. Without the right housing and mounts, even high-quality cameras are vulnerable to damage or misalignment. And if the display technology does not match the system’s capabilities, valuable footage may go underutilised or unnoticed.

For businesses, facility managers, and security professionals, understanding these components is not just a technical consideration—it is a strategic investment in performance, reliability, and long-term value.

Selecting and configuring these elements with care ensures that your surveillance system functions efficiently, adapts to real-world demands, and provides clear, actionable video when it is needed most.

Whether upgrading an existing setup or installing a new one, prioritising the right hardware components is key to building a robust and dependable CCTV system.

If you’re planning your next surveillance project, this foundational knowledge will guide you in making better choices and help you get the most out of your security infrastructure.
